GATE MOTORS
Brano Industries proudly provide a range of quality gate motors including Sun gate motors, Centurion gate motors, and Gemini gate motors for sale to the trade and retail sectors.
BRANO SUN500 SLIDING GATE MOTOR
Mechanical Data
- Travel Speed: 400mm/sec
- Torque: 23NM
- Working Cycle: 80ELECTRICAL DATA
- Control Board: 14 AF
- Sun-500-Square |Power Input: 230V AC
- Motor Voltage: 24V DC
- AC & DC Driven
- Integrated Lights
- Magnetic Limit Switch GENERAL DATA
- Dimensions: (l)300 x (d)210 x (h)300mm
- Weight: 13kg
- Working Temperature: -20°C / +50°C
- Maximum Gate Mass: 500kg
BRANO SUN700 SLIDING GATE MOTOR
Mechanical Data
- Travel Speed: 400mm/sec
- Torque: 26NM
- Working Cycle: 80ELECTRICAL DATA
- Control Board: 14 AFSun-700-Square
- Power Input: 230V AC
- Motor Voltage: 24V DC
- AC & DC Driven
- Spring Limit Switch GENERAL DATA
- Dimensions: (l)300 x (d)210 x (h)300mm
- Weight: 13kg
- Working Temperature: -20°C / +50°C
- Maximum Gate Mass: 1000kg
SUN Sliding Gate Motors
GEMINI DC SLIDER 12AH SLIDING GATE MOTOR
Mechanical Data
- Motor: 12 V DC
- Motor Size: 120Watt
- Gearbox: Oil filled worm drive
- Gear Ratio: 33:1
- Gate Speed: Up to 21 meters per minute
- Limit Switches / Proximity Sensors: Electronic limits automatically set after first power up
- Obstruction Sensing: Electronically adjustable obstruction sensing in both directions
- Activation: By using any N/O electrical circuit, push button or remote control
- Battery: 12 Volt, 12 Ah sealed lead acid type, maintenance free
- Electricity Consumption: +1 Amp
- Weight: +24kg (includes rack and base plate)
- Duty Cycle: 65%
- Guarantee: 12 months
Other Characteristics
– Automatic closing facility
– LED display for gate mode
– Buzzer during gate movement (optional)
– Infra-red sensing compatible
– Pedestrian facility
– Clutch-type mechanical override in case of malfunction
– Battery backup in case of power failure
– Soft Start and stop
– Town house option
– Direction change option
– Beam follower option
– On-board receiver
– Optional wireless wall console
– Courtesy light facility

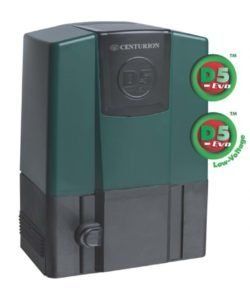

CENTURION D5 EVO SLIDING GATE MOTOR
Mechanical Data
- Motor: 12 V DC
- Motor Size: 120Watt
- Gearbox: Oil filled worm drive
- Gear Ratio: 33:1
- Gate Speed: Up to 21 meters per minute
- Limits: Digital Origin Seeking System (D.O.S.S.)
- Obstruction Sensing: Electronically adjustable obstruction sensing in both directions
- Activation: By using any N/O electrical circuit, push button or remote control
- Battery: 12 Volt, 12 Ah sealed lead acid type, maintenance free
- Weight: +10kg
- Guarantee: 12 months
Other Characteristics
– Automatic closing facility
– Infra-red sensing compatible
– Pedestrian facility
– Mechanical override in case of malfunction
– Battery backup in case of power failure
– Soft Start and stop
– Condiminium option
– Backup Electronically Erasable Programmable Read-Only
Memory
– Time Barring
– Diagnostic Screen
– Courtesy light facility
